General
| Status | Active |
| Category | Crimp Terminals |
| Series | 5556 |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Overview | Mini-Fit Jr. Power Connectors |
| Product Name | Mini-Fit |
| UPC | 800753627710 |
39-00-0046 - FEMALE TERMINAL, TIN, 22-28 AWG
5556 SERIES
$0.22
In Stock

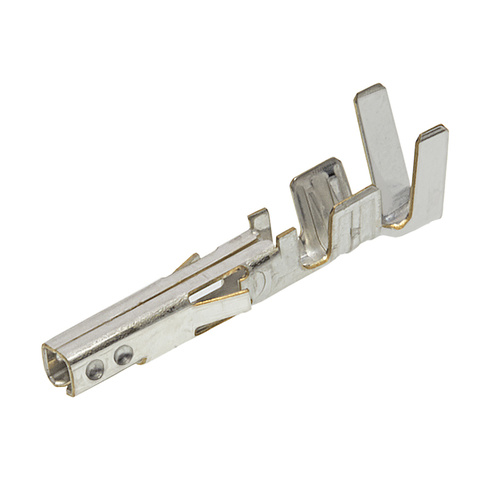

Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 22-28 AWG
(B01682C)
Physical
| Durability (mating cycles max) | 30 |
| Gender | Female |
| Material - Metal | Brass |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Net Weight | 123.000/mg |
| Packaging Type | Reel |
| Plating min - Mating | 0.889µm |
| Plating min - Termination | 0.889µm |
| Termination Interface: Style | Crimp or Compression |
| Wire Insulation Diameter | 0.90-1.80mm |
| Wire Size AWG | 22, 24, 26, 28 |
| Wire Size mm² | N/A |
https://www.molex.com/webdocs/datasheets/pdf/en-us/0039000046_CRIMP_TERMINALS.pdf
| SKU | B01682C |
| Brand | MOLEX |
| Shipping Weight | 0.0010kg |
