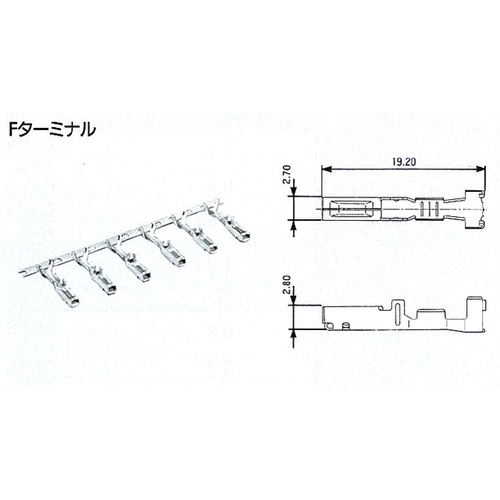

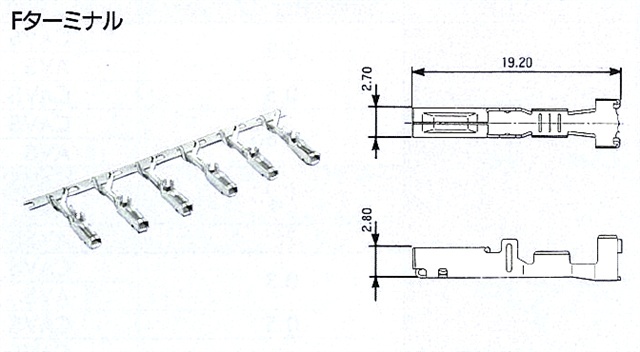

7116-1472 - FEMALE TERMINAL, TIN, 1.25mm
YAZAKI SWP CONNECTORS
(B01879)
Classified Parts | Terminal |
---|---|
Family*2 | SWP Connectors |
Type | - |
Yazaki Part Number | 7116-1472 |
Connection Type | Wire to Wire Wire to Board Wire to Device |
Unsealed/Seald | Sealed |
Male/Female | Female |
Number of Poles | - |
Tab Width mm(inches) | 1.8(070) |
Material | Copper Alloy |
Plating | Tin Plating |
Color | - |
Rating | - |
Mating Part Numbers | 7114-1472 |
Product Specification No. | YPES-11-04-012 |
Instruction Manual No. | YPES-15-029 |
*2)The Family introduction page can be seen by clicking the Family name.
Product Specification | |
---|---|
Allowable Current(Ref.) | Refer to the table of Housing |
Low Level Contact Resistance | Refer to the table of Housing |
Insulation Resistance | Refer to the table of Housing |
Withstanding Voltage | Refer to the table of Housing |
Temperature Range | Refer to the table of Housing |
Application List of Installable Components | ||
---|---|---|
Wire Type | Wire Size(mm2) | Wire Seals |
AVS | 1.25 | 7157-7899-90 |
AVSS | 2f | 7157-7899-90 |
CAVS | 1.25 | 7157-7811-80 |
SKU | B01879 |
Brand | Yazaki |
Shipping Weight | 0.0010kg |
