| Part Number: |
DTM06-3S-E007 |
| Series: |
DTM Series |
| Insulation: |
.053-.120 [1.35-3.05] |
| Wire Size: |
16, 18, 20, 22 |
| Required Wedgelock: |
WM-3S |
| Keyed: |
No |
| Color: |
Gray |
| Material: |
Plastic |
| Shape: |
Rectangular |
| Connector Style: |
Plug |
| Cavities: |
3 |
| Contact Size: |
20 |
| Current Rating: |
7.5 |
| Holds Pin/Socket: |
Socket |
| Flange/In-line/PCB Mount: |
In-line |

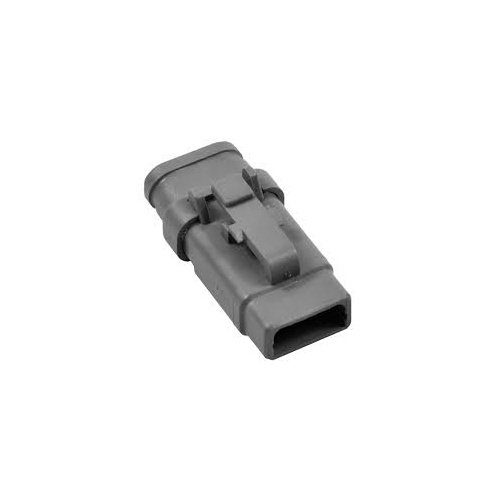

(A03290YH)
Product Type Features
-
Connector Style : Housing for female terminals
-
Connector System : Wire-to-Wire
-
Sealable : Yes
-
Hybrid Connector : No
-
Primary Locking Feature : Integrated in Housing
-
Connector & Contact Terminates To : Wire & Cable
-
Strain Relief : Add By Accessory
Configuration Features
-
Number of Positions : 3
-
Number of Rows : 1
-
Blank Cavity Position : 0
Electrical Characteristics
-
Nominal Voltage Architecture (V): 12, 24, 48
-
Operating Voltage (VAC): 250
-
Operating Voltage (VDC): 250
Body Features
-
Color : Gray
-
Cable Exit Angle : 180°
-
Body Material : PA GF
Contact Features
-
Mating Pin Diameter : 1.02 mm [ .04 in ]
-
Contact Current Rating (Max) (A): 7.5
Mechanical Attachment
-
Mounting Feature : Without
-
Terminal Position Assurance : Yes
-
Polarized : Yes
Housing Features
-
Centerline (Pitch) : 4.19 mm [ .165 in ]
Dimensions
-
Width : 18.64 mm [ .734 in ]
-
Height : 14 mm [ .551 in ]
-
Length : 37.36 mm [ 1.471 in ]
Usage Conditions
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
-
Circuit Application : Power & Signal
Industry Standards
-
Degree of Protection : IP68, IP6K9K
-
UL Flammability Rating : 20mm Flame Test per Standard UL-94
-
Agency/Standard : SAE J2030
Packaging Features
-
Packaging Method : Box
-
Packaging Quantity : 1400
Other
-
Connector Position Assurance Capable : No
-
Serviceable : Yes
